High- Pressure Valves

Catalogue Page High- Pressure Valves Type Pressure Range PDF
710.00 Valves based on ATEX 1,000–10,000 bar Download
710.01 Hand valves, metering valves 1,000–10,000 bar Download
710.02 Micrometering valves 1,000–7,000 bar Download
710.03 Piston type air-operated valves 1,000–7,000 bar Download

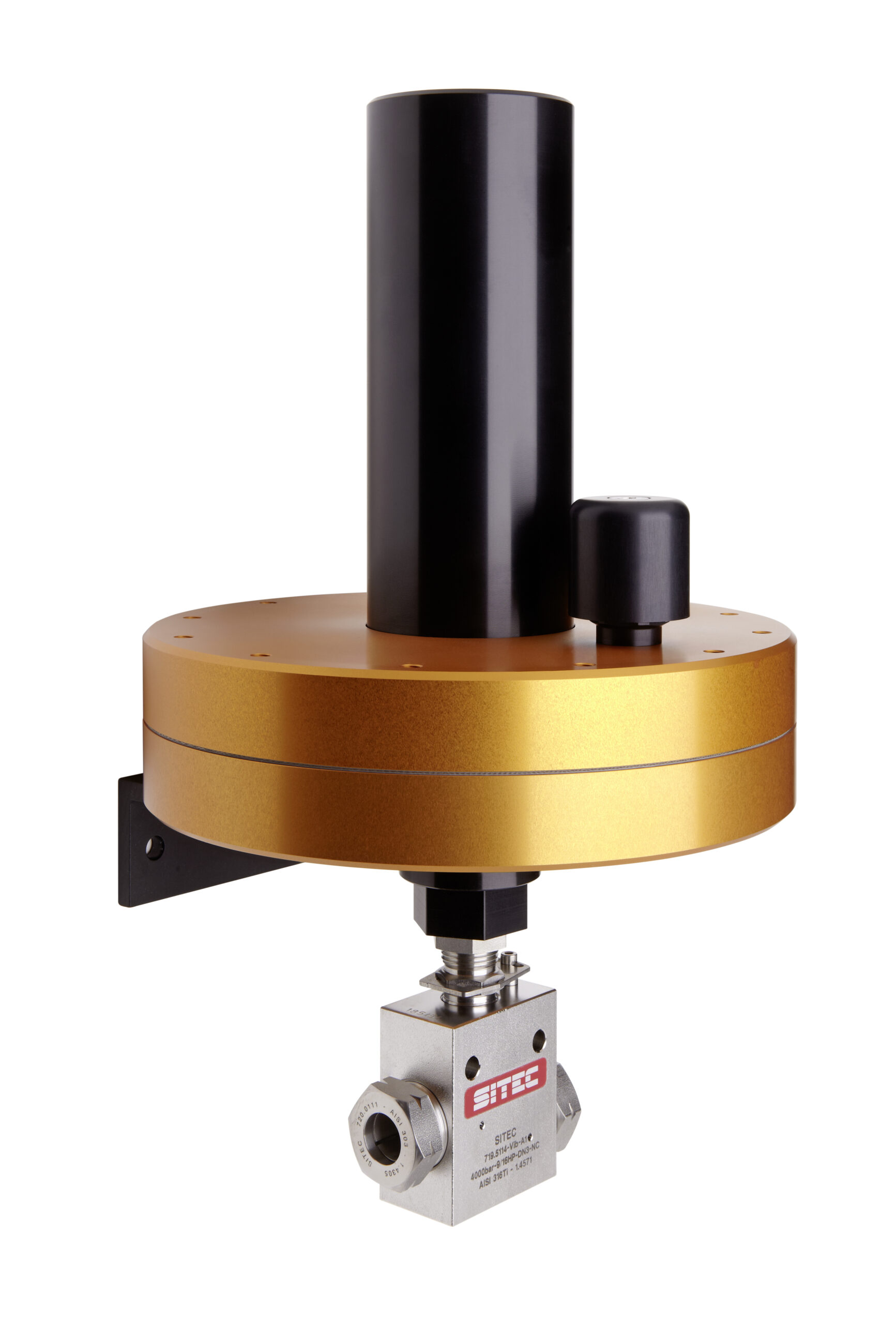

710.04 Diaphragm type air-operated valves 400–10,000 bar Download
710.05 High-temperature valves 1,000–4,000 bar Download
710.06 Special valves Max 2,000 bar Download
710.07 Laboratory valves LHP 1,000 bar Download

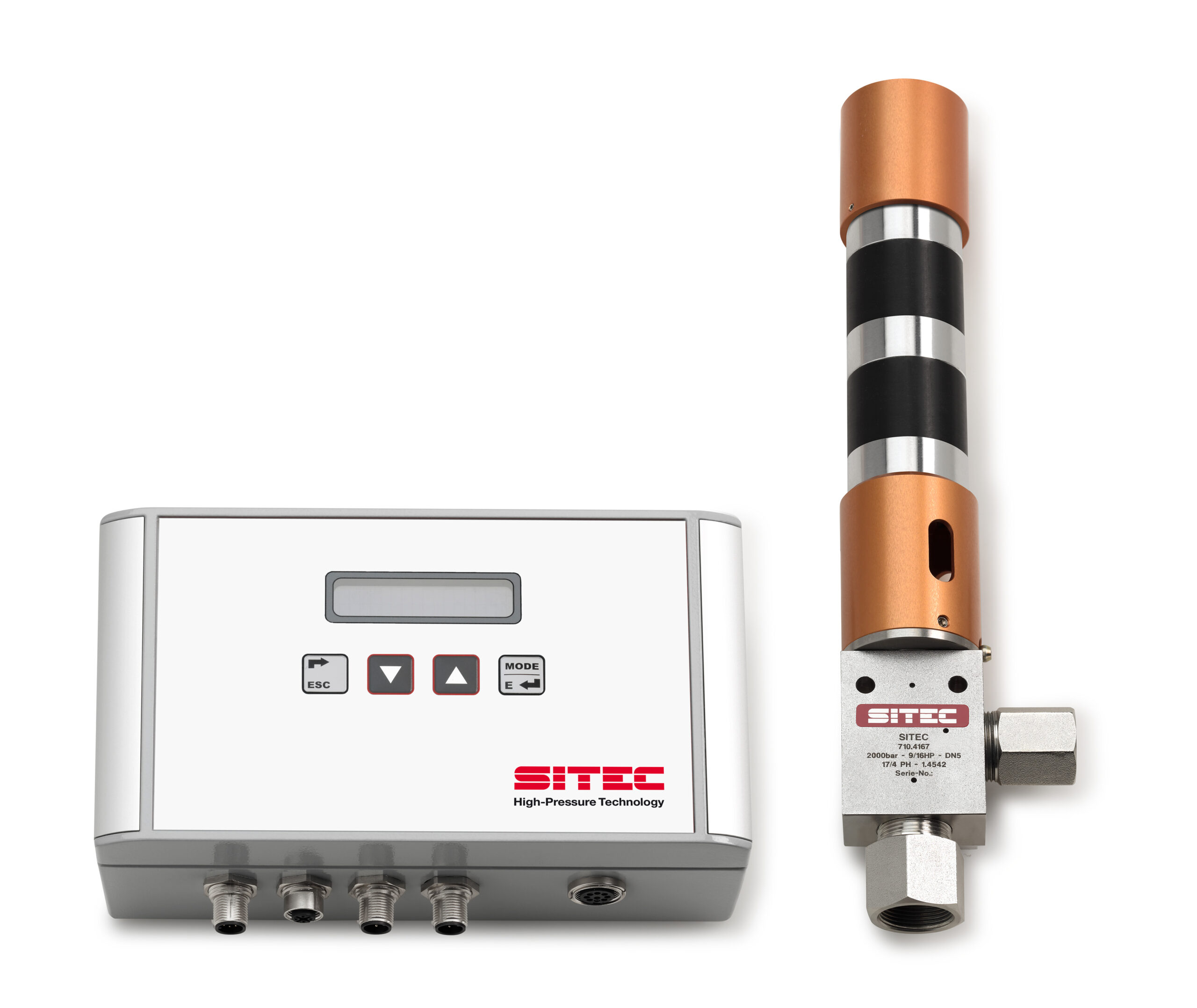

710.08 Motor-driven valves 1,000–7,000 bar Download

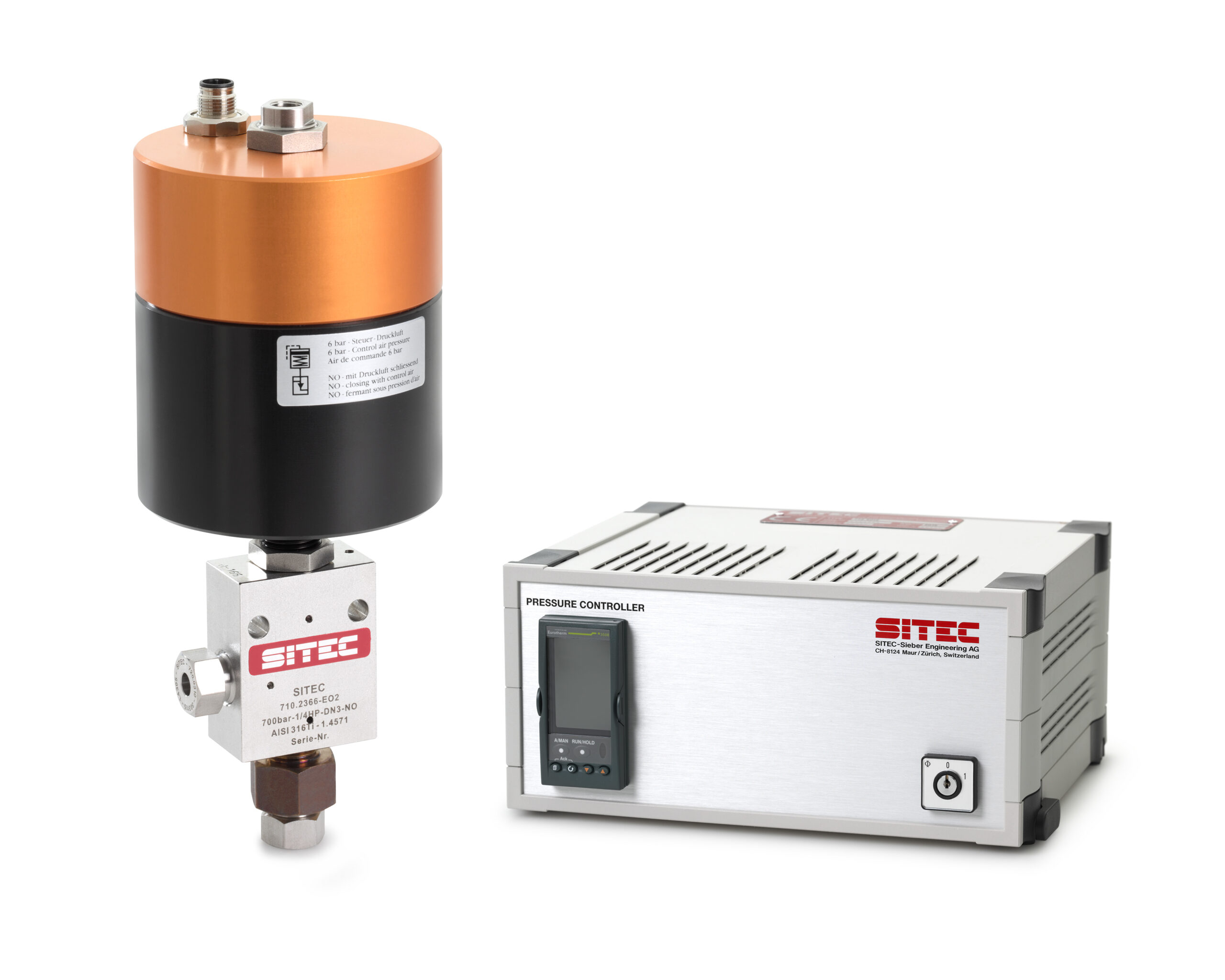

710.09 Air-operated control valves Max 4,000 bar Download
710.10 Test bench valves max. 90°C -0.8–+40 bar Download
710.11 Test bench valves max. -40–+120°C max. 500 bar Download
710.12 Test bench valves max. -40–+120°C max. 300 bar Download

Advantages High-Pressure Valves

  • Maximum reliability and safety at extreme pressures.
  • Zero leakage provides high integrity and performance.
  • Stem backlash problems eliminated.
  • Easy operation – low operating torque.
  • Satisfies most quality control and certification requirements.
  • Material certificates available.
  • Lower cost – exotic material valves.
  • Safety weep holes on tubing connections and packing.
  • Professional sales and service back-up.
  • Connections for inch and metric SITEC HP tubing.
  • Maximum fluid working temperature 200°C (400°F).
  • All valves are factory tested and available short-dated

Options



  • 6 body patterns.
  • Replaceable seat valve: Type 6.
  • Stem tip designs include – Vee, Regulating (710.01) and Metering – 710.02.
  • Air- and hydraulically-operated valves – see 710.03.
  • Stem extension for low or high temperatures – 710.05/.06.
  • Valves with special inserts and all wetted parts in exotic materials – Hastelloy C, titanium – 710.06.
  • Lower stem made of ceramic, tungsten carbide, etc.
  • Antivibration connectors for extended service life of tubing on cyclic applications.
  • Extended drive shaft for high- and low-temperature service.
  • Drive with incorporated torque limiter.
